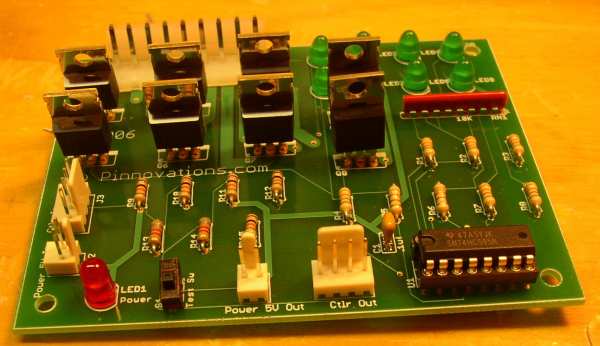

GH2006 Pinball: Relay Controller PCB 2

Another view. Each MOSFET has an LED so you can see if it's energized or not. Very handy during testing.
