GH2006 Pinball: Relay Controller PCB 1

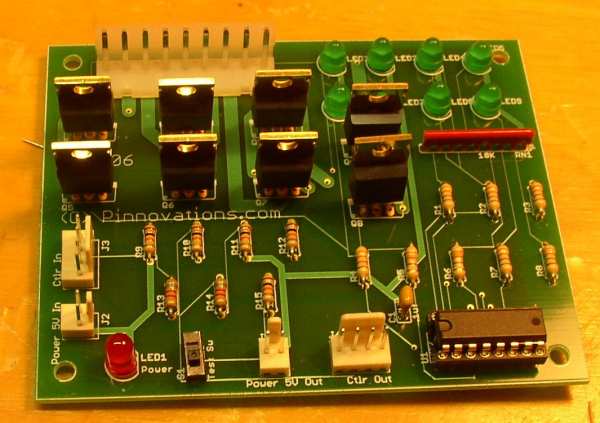

Relay PCB. This handles 8 coils. Two are used in the game, although more could be daisy-chained if necessary. I made a mistake in resistor sizes, and ended up de-soldering them and making a huge mess. I need better tools and more practice!!!
