GH2006 Pinball: Power Bus

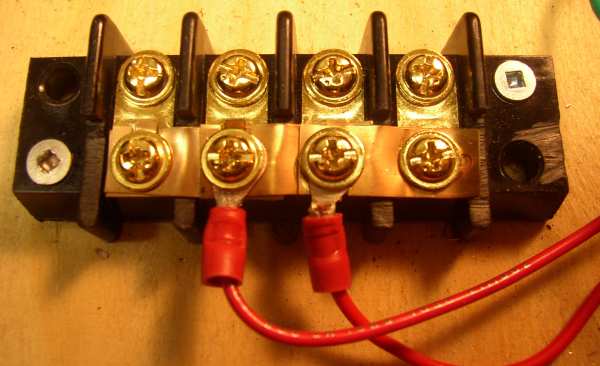

I took strips of copper to lay across the screws in order to create a bus. This is for +25V. Same thing for ground. Seems to work well.
