GH2006 Pinball: Relay Breadboard

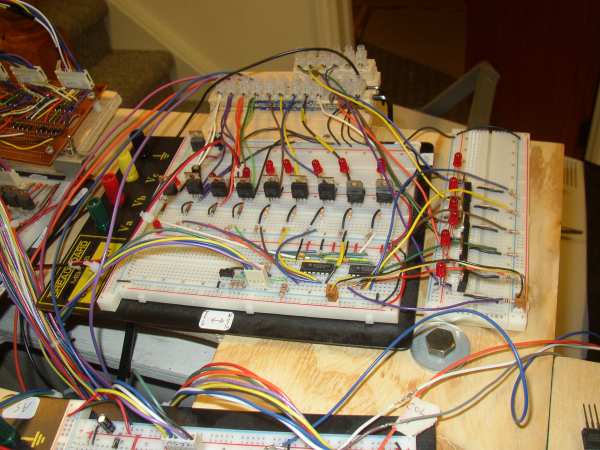

The breadboard for controlling the coils with all MOSFETs installed. This isn't a great set up - too much wire resistance prevents the coils from getting as much current as they need. But it worked fine for a few months on this.
