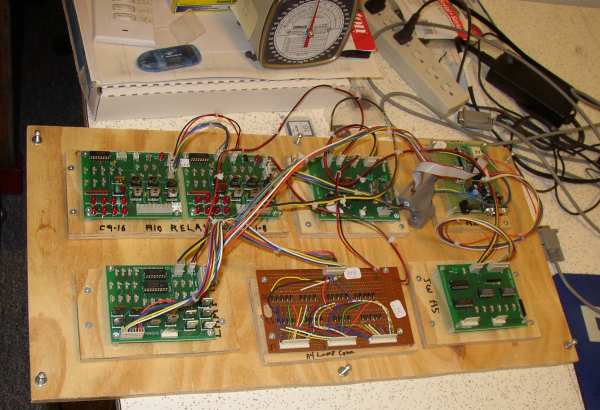

GH2006 Pinball: PCBs Mounted

The various PCBs screwed down to plywood before going in the head. I had to swap things around a bit due to miscalculations on cable lengths!
