GH2006 Pinball: Lamp Connector Board

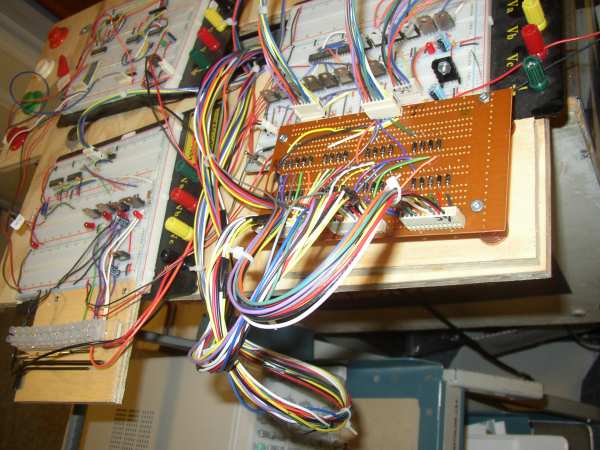

This board mostly contained 1N4004 diodes for the lamp matrix. I decided to install remotely to keep things neat.
