GH2006 Pinball: Lamp Wiring

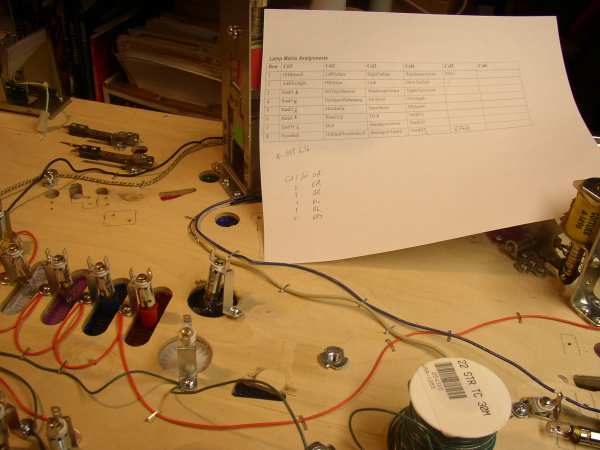

The start of wiring up the controlled lamps. A staple gun was used to tie down a lot of this wiring. I used old wiring from a 1959 Williams Pinch Hitter in spots. 22 gauge stranded wire otherwise.
