GH2006 Pinball: Laying Out Playfield

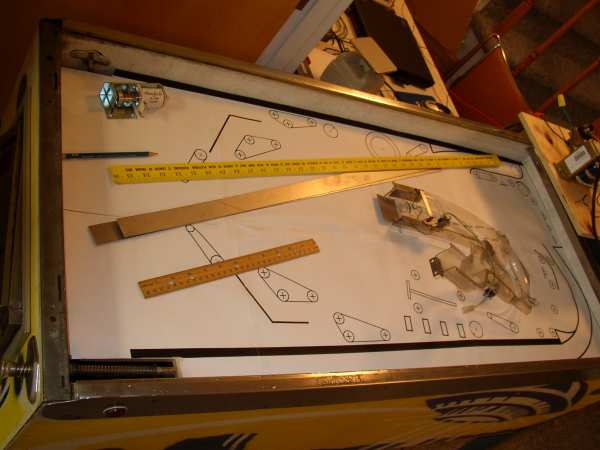

Laying out the playfield with a printed CAD drawing. I would punch holes to mark the spots to drill.
